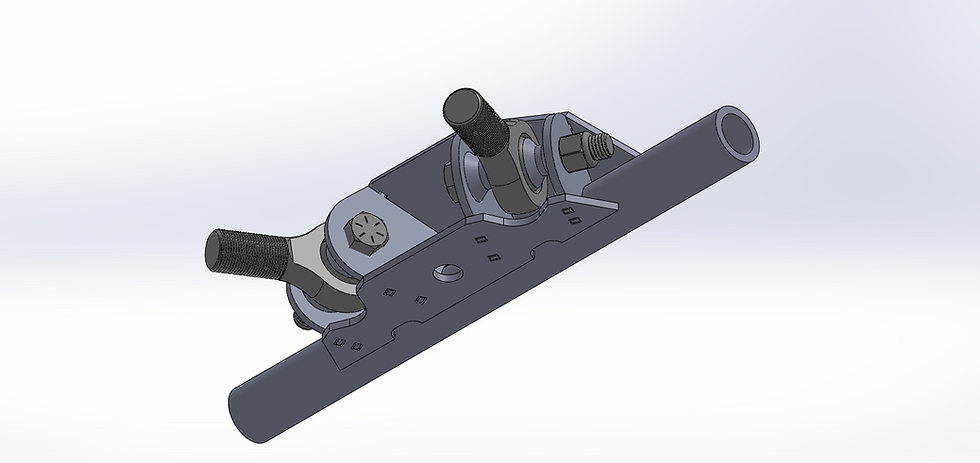

This bracket system is designed to work with a 4 link suspension system for the lower links on the frame side of a tube chassis. Tight and compact but very beef. Designed to attach to a 1.75" od tube and made from 1/4" material. 2 5/8" mounting width for your choice of joints. 9/16" bolt holes but can fit up to 3/4" if the holes are opened up. No bending necessary! Also has alignment tabs to assist in assembly. Reliefs and drain holes on the bottom but solid top if you need to add bracing. Lands flat on the bottom of the tube for maximum ground clearance.

This is a package of DXF files that are cut ready for plasma/laser/waterjet cutting. Designed for 1/4" material.

Let us do the CAD work and you do the fun part!

These are downloadable files ONLY and does not include a physical product, nothing will be shipped. Being a digital product, we can NOT provide refunds. If you have any problems or need a different file type please contact us.

These files can be used in the process of making a physical product to sell but please do not resell, share or distribute the original file in any way. Modifying the file and redistributing is also prohibited. We have to make a living too.

Let us know how we're doing and leave a review!

Feel free to contact us with any request for change or if you have an idea!
